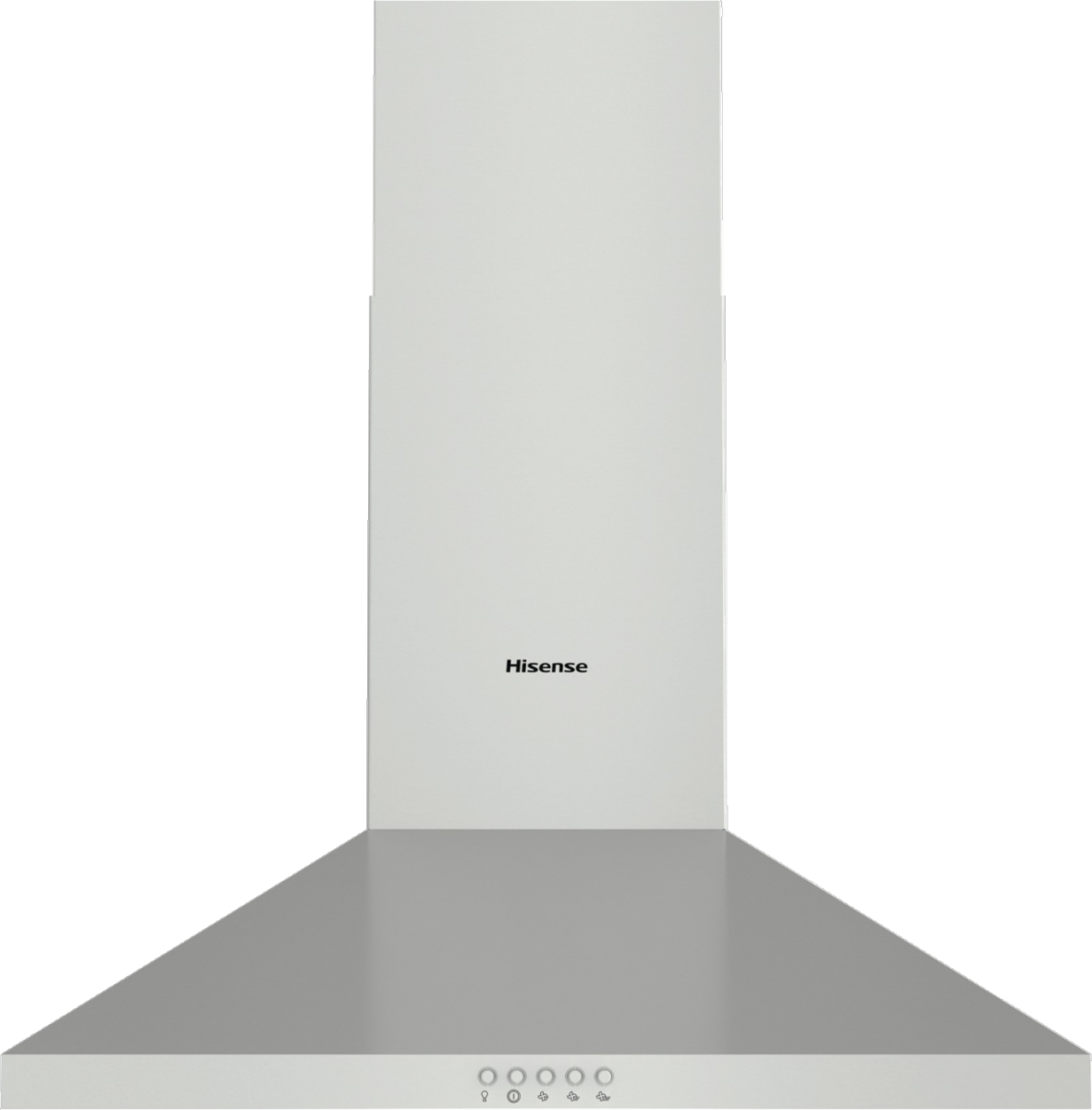

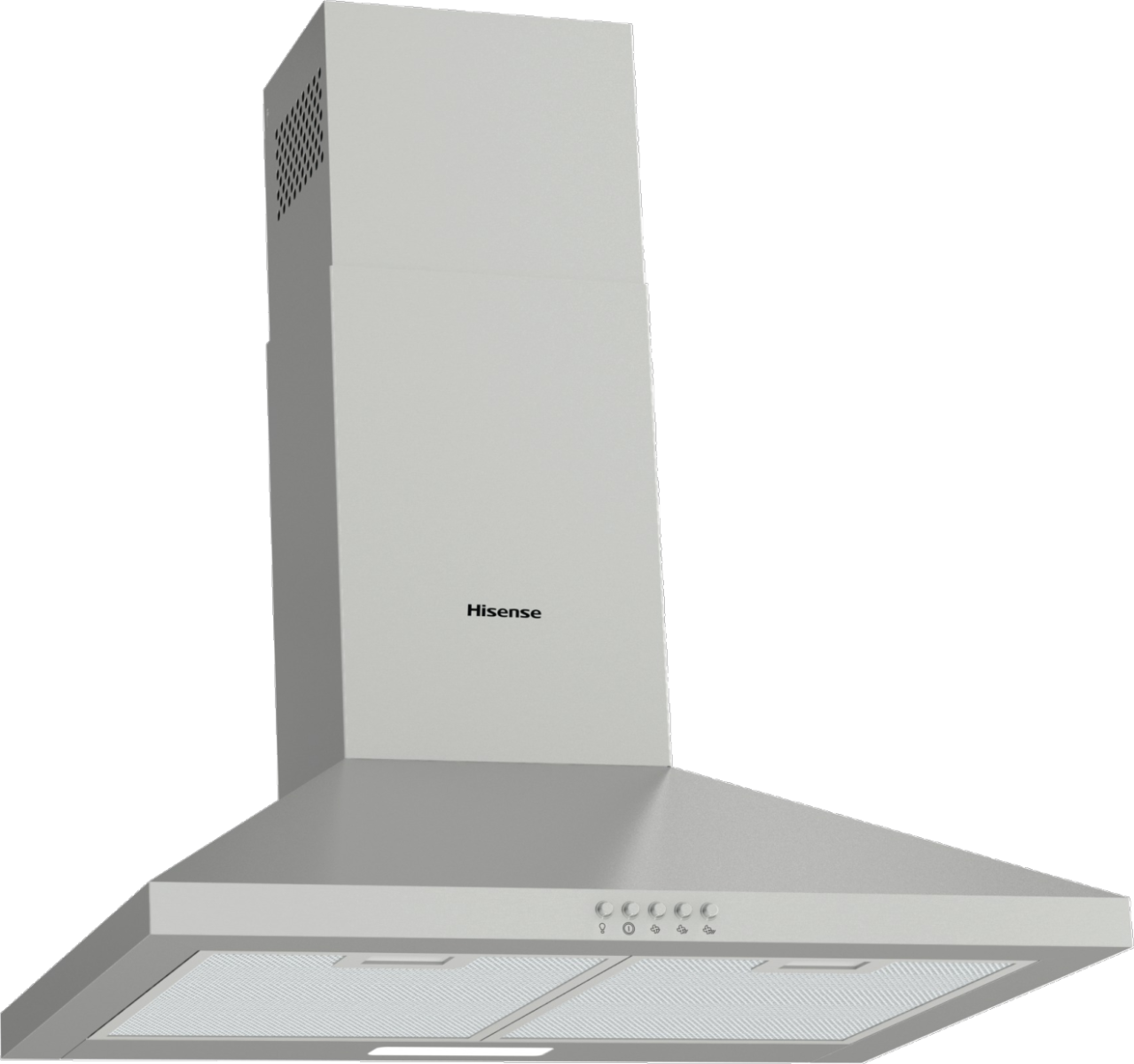

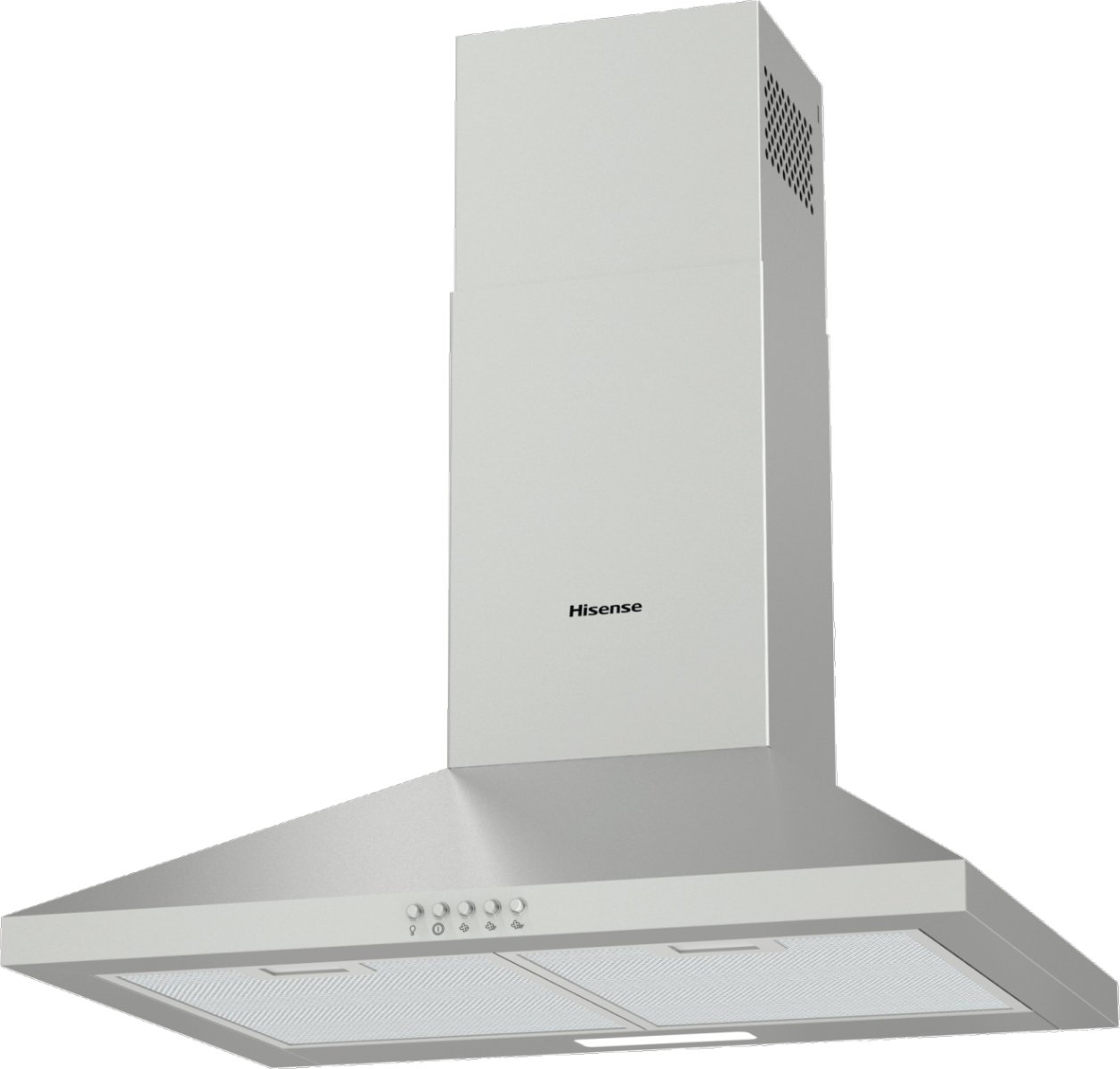

Hi4 Chimney kitchen hood, 60 cm CH6C4BXUK
- Energy efficiency class : B
- Wall freestanding
- Control type : Knobs
- Noise level (max) : 65 dB(A)
- Maximum extraction rate by extraction operation : 450 m³/h
- Width of the product : 600 mm
- Height of the product : 166 mm
Specification NOW, HERE’S THE TECHNICAL BIT…
General information
Product group:
Kitchen hood
Energy efficiency class:
B
Installation type:
Wall freestanding
Hood type:
Chimney
Operation type:
Venting with air extraction or recirculation
Cabinet material:
Stainless steel
Material of chimney:
Stainless steel
Cabinet colour:
Stainless steel
Colour of decorative chimney:
Stainless steel
Efficiency
Grease filtering efficiency class:
B
Lightning efficiency class:
A
Fluid dynamic efficiency class:
C
Total power of the motors:
110 W
Number of speed level:
3
Number of lights:
2
Number of motors:
1
Maximum extraction rate by extraction operation:
450 m³/h
Maximum extraction rate by recirculation operation:
305 m³/h
Air flow by extraction version, step 1:
252 m³/h
Air flow by extraction version, step 2:
354 m³/h
Air flow by extraction version, step 3:
450 m³/h
Annual energy consumption:
38.2 kWh
Control
Control type:
Knobs
Remote control:
No
Functions
Timer function:
No
Features
Perimetric suction:
No
Grease filter indicator:
No
Illumination setting:
On/off light switch
Equipment
Lamp type:
LED

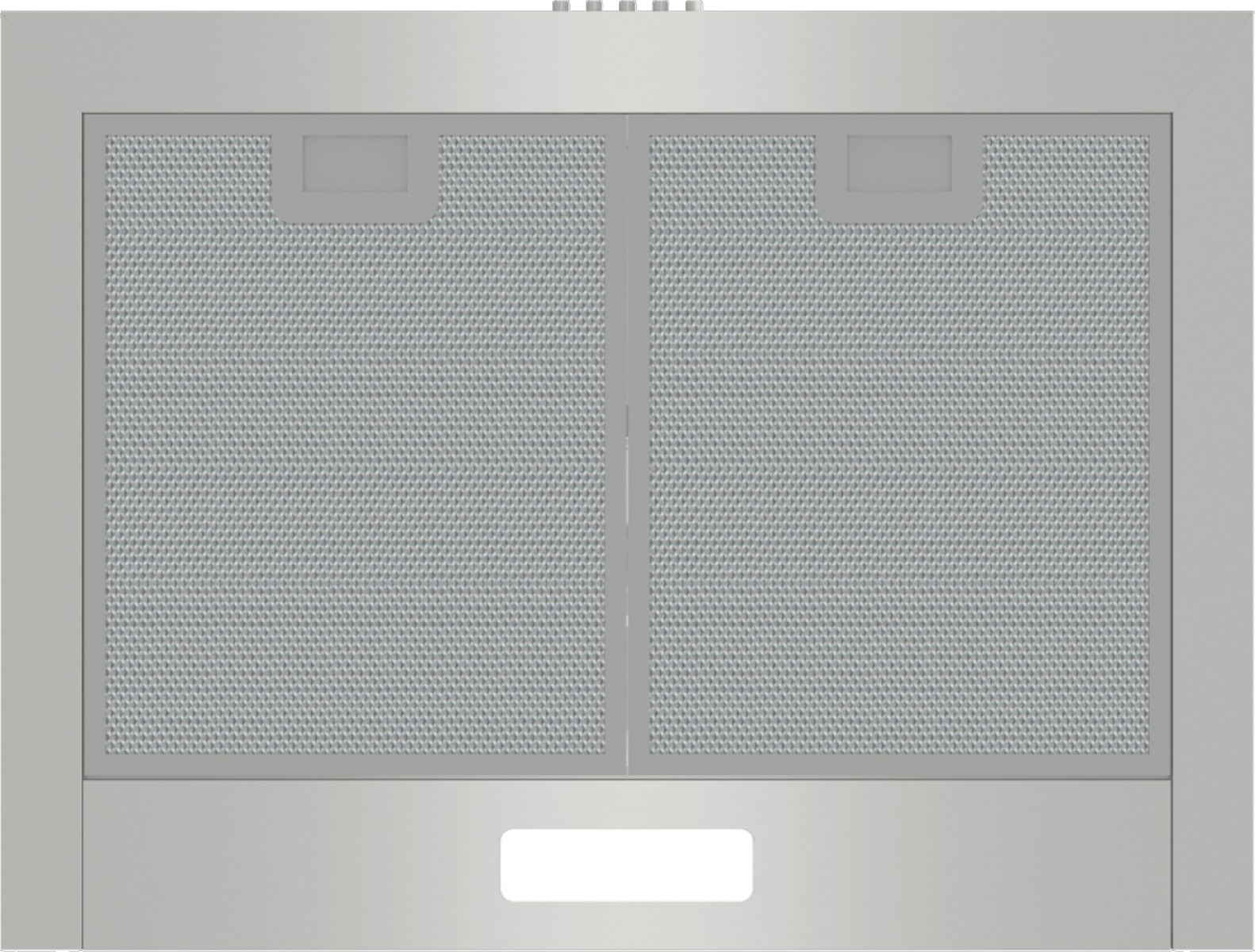

Grease filter:
Aluminium
Number of grease filters:
2
Motor type:
Capacitor
No return airflow flap:
150 mm
Additional equipment
Number of charcoal filters:
2
Technical data
Noise level (max):
65 dB(A)
Min. height of the chimney:
330 mm
Max. height of the chimney:
630 mm
Length of electrical cord:
1000 mm
Width of the product:
600 mm
Height of the product:
166 mm
Depth of the product:
450 mm
Width of the packed product:
650 mm
Height of the packed product:
245 mm
Depth of the packed product:
500 mm
Gross weight:
8.701 kg
Net weight:
6.9 kg
Voltage:
220-240 V
Frequency:
50 Hz
Connected load:
112 W
Product code:
738941
EAN code:
3838782525711
